Description
What is it?

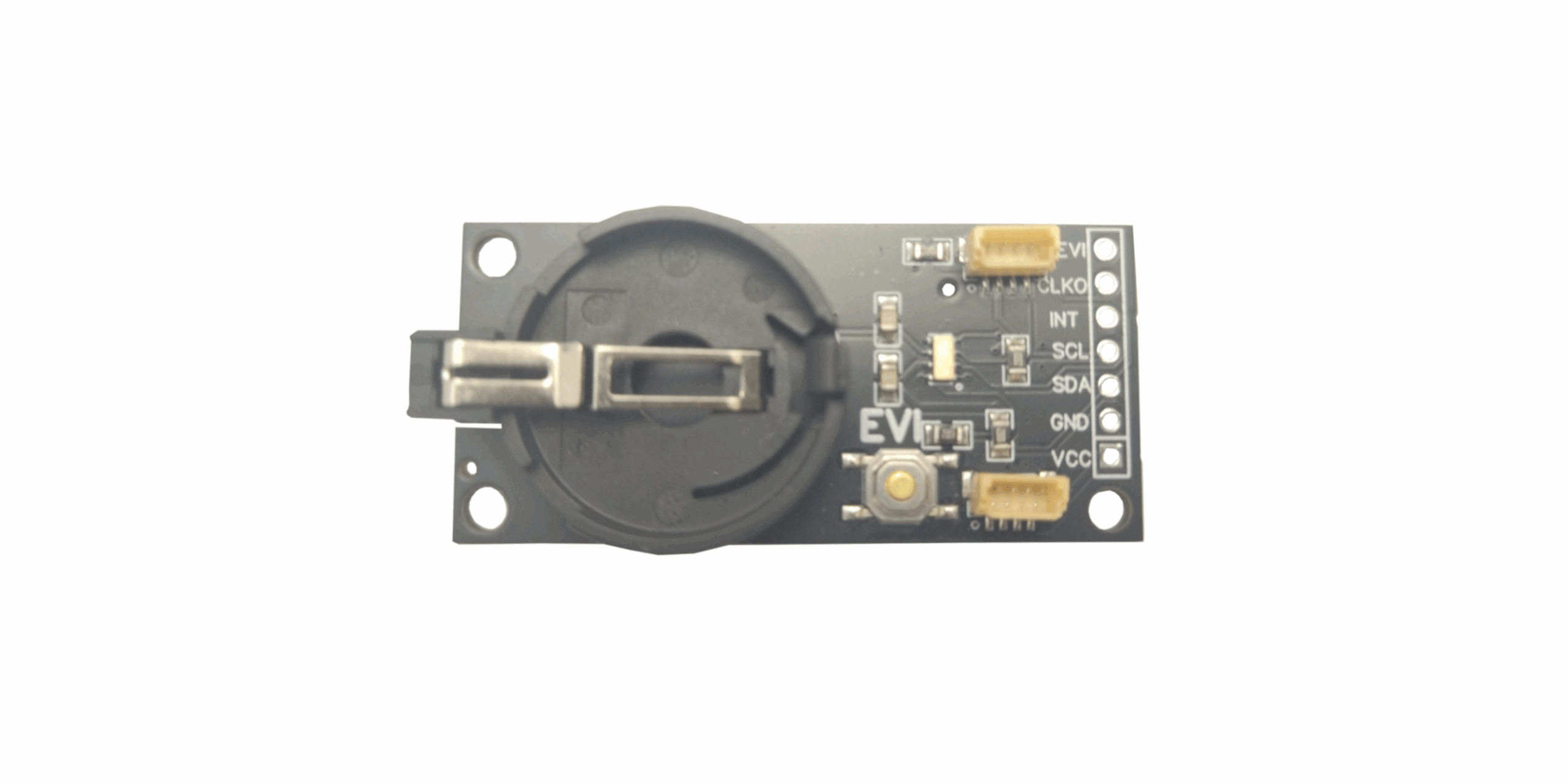

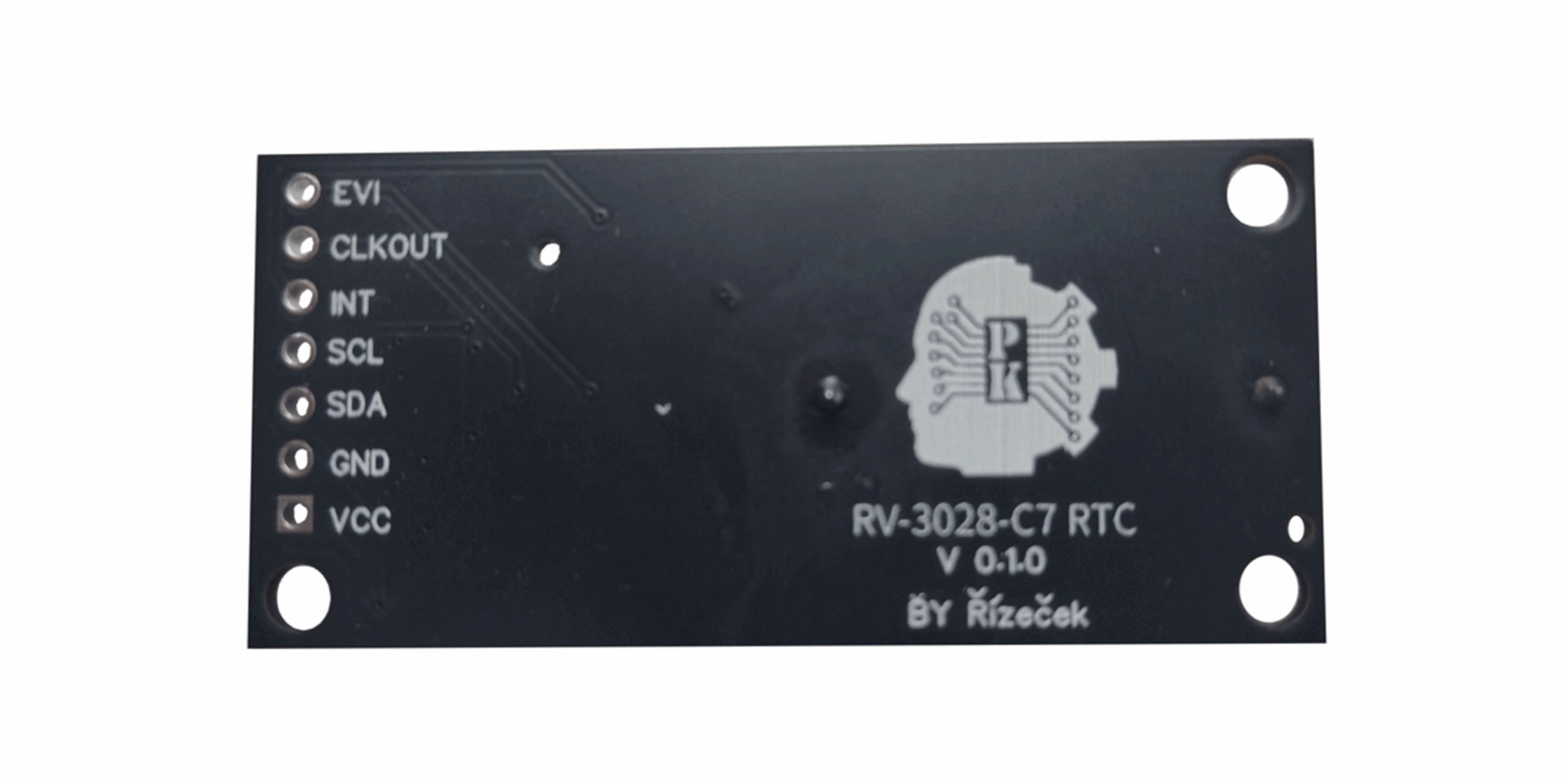

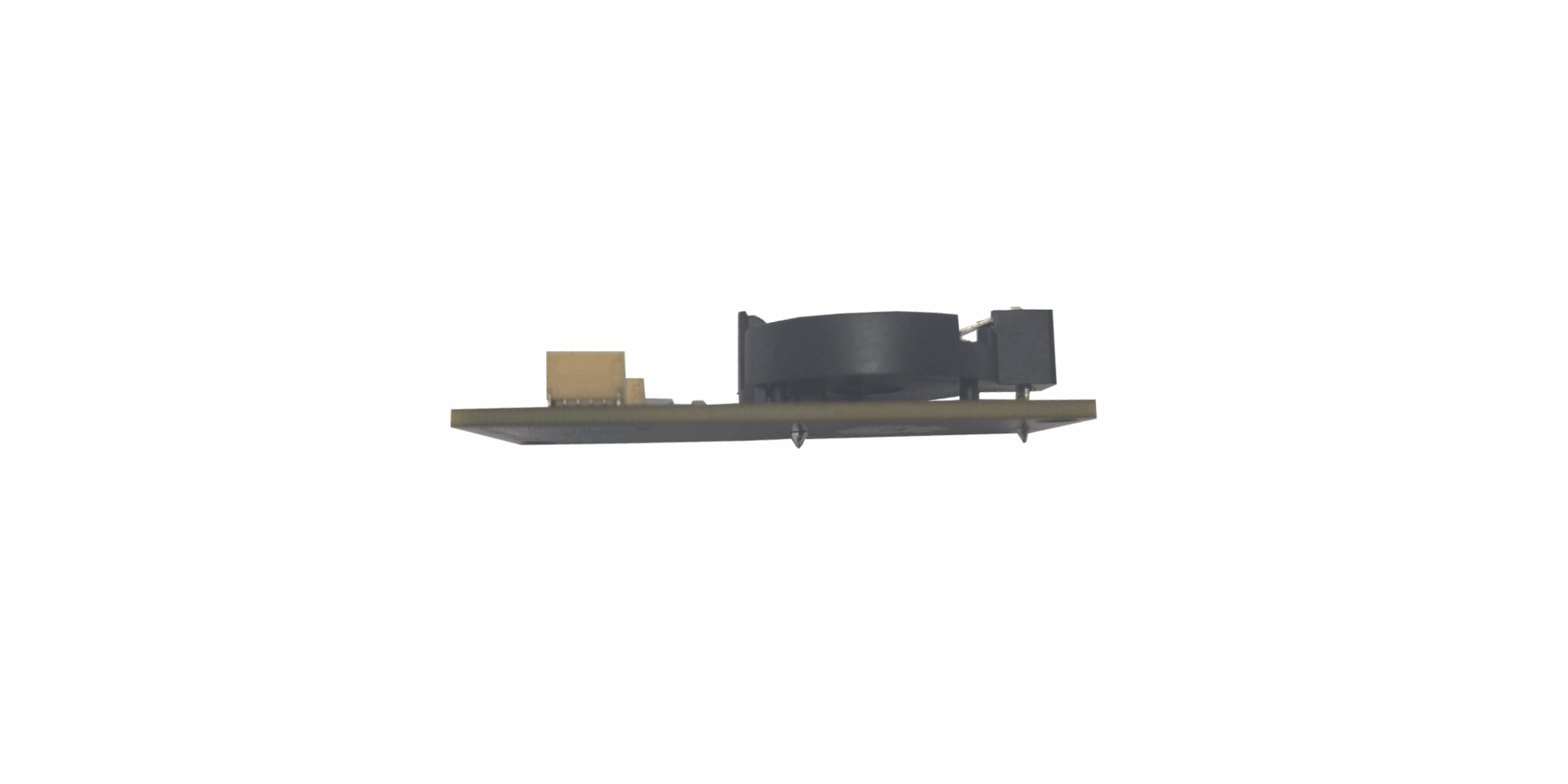

The PK-RV-3028-C7 is a precision clock module built around the ultra-low-power RV-3028-C7 RTC chip from Micro Crystal Switzerland. It features two Stemma QT connectors, a large CR2032 battery connector, and a programmable event button.
Why did you make it?
This PBC has been forged to provide ultra precise real time clock while having super-high longetivity.
What makes it special?
- Stema QT connectors : The clock’s PCB includes Stemma QT connectors, allowing it to be easily linked in series with other compatible boards or shields.
- CR2032 Battery Support : The board is equipped with a large CR2032 battery connector for extended usage. When paired with the ultra-low power consumption of the RTC chip, it can last a significantly long time.
- Event Button : The board has a programmable event button, allowing the RTC to perform different actions when pressed.
